Condair ESCO Live Steam Distribution System

Q: What is the Condair ESCO Live Steam Humidifier?

The ESCO humidifier is an ultra precise live steam distribution system that connects directly to a building’s central steam boiler. It delivers dry, condensate free steam into ducts or Air Handling Units (AHUs), making it a unique and reliable solution for commercial and industrial humidification.

Q: Does the Condair ESCO require special live steam quality?

Yes, to humidify the air using a Condair ESCO pressurized steam distribution system, you need flawless, clean pressurized steam without any chemical additives.

Q: How does the Condair ESCO prevent spitting or condensation inside ducts?

The innovative steam nozzles extract steam exclusively from the condensate-free core flow. Short humidification distances are crucial for reliable and hygienic steam air humidification. In HVAC systems, steam clouds must not come into contact with air duct fittings. This would result in damp areas, water accumulation, and hygiene risks.

Get in touch with us

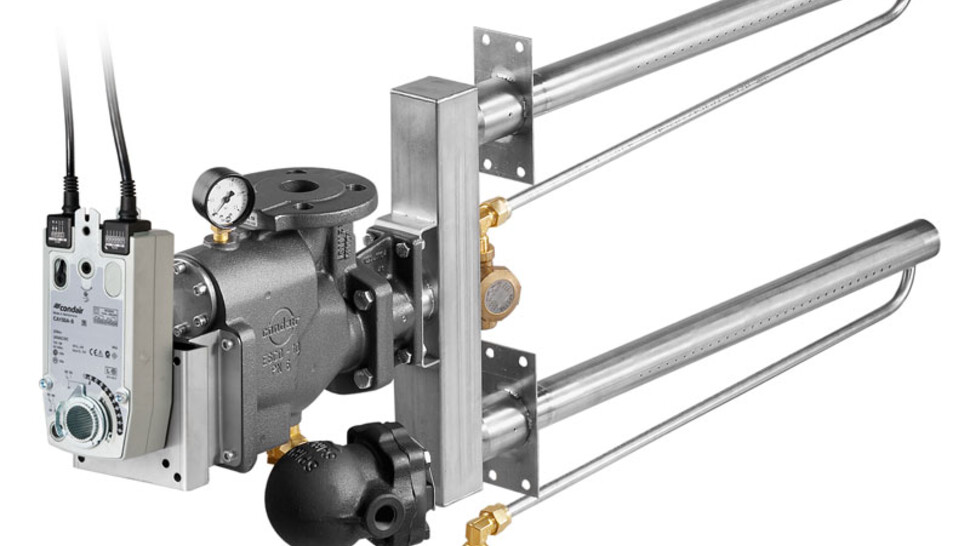

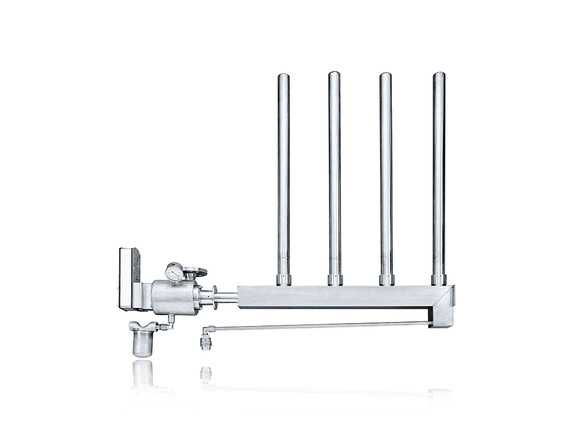

Condair ESCO

Live steam distribution system

The Condair ESCO live steam distribution system efficiently delivers dry, hygienic steam from the central steam network to the air ducts or ventilation units. It features a precise ceramic rotary disc valve (0–100% modulation), internal nozzles for condensate-free distribution of saturated steam in the air duct, fast response without preheating, and capacities of up to 1,000 kg/h at pressures of up to 4 bar.

Condair ESCO steam humidifier

Top of page Features Product Details Downloads FAQs Testimonials

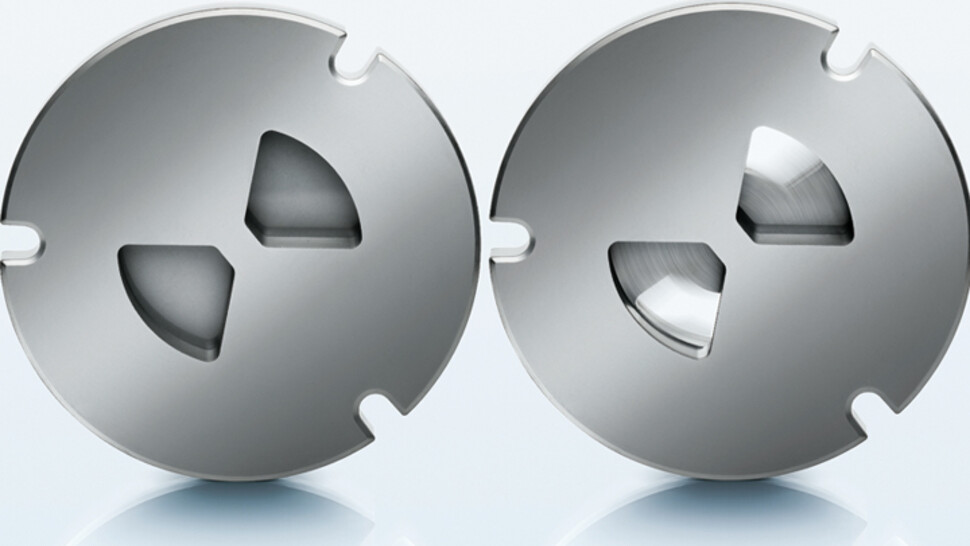

Rotary Disk Valve

ESCO’s rotary disc valve ensures 100% tight shut-off, preventing steam leakage when humidity is not required. Its self-adjusting, low-wear design guarantees long service life and precise control for consistent, energy-efficient performance.

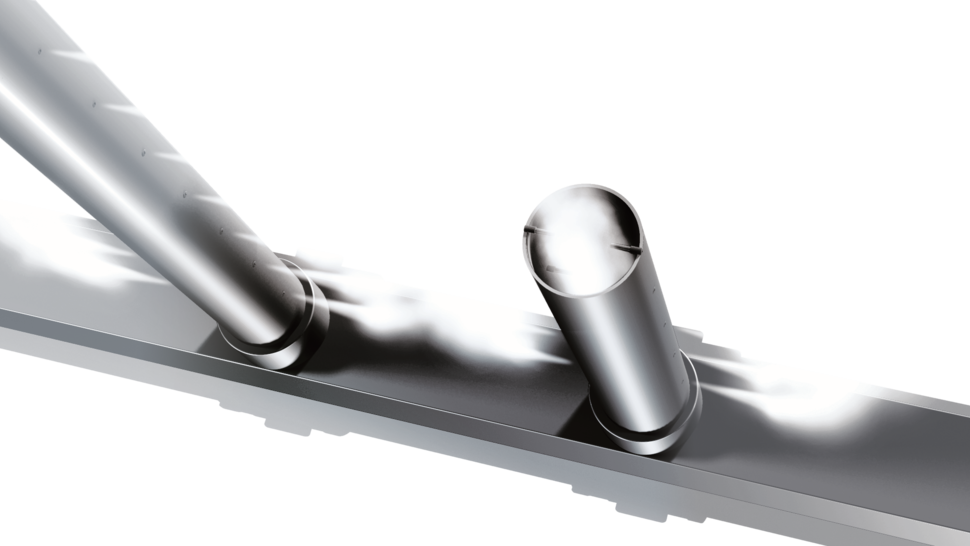

Short Absorption Distance

ESCO’s shortest steam absorption distance enables rapid humidity integration into the air stream, minimising duct length requirements. This ensures space-saving installation, prevents condensation, and delivers precise, efficient humidity control even in compact air handling systems.

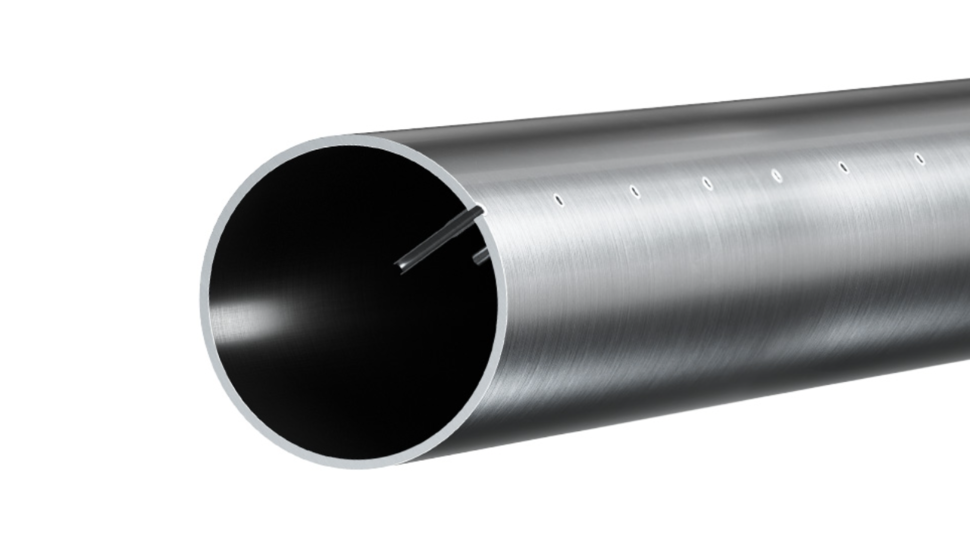

Steam Distribution Nozzles

ESCO’s steam distribution nozzles provide uniform, turbulence-free steam dispersion directly into the air stream. Their precision-engineered design ensures rapid absorption without condensation, delivering consistent humidity while maintaining hygiene and energy efficiency.

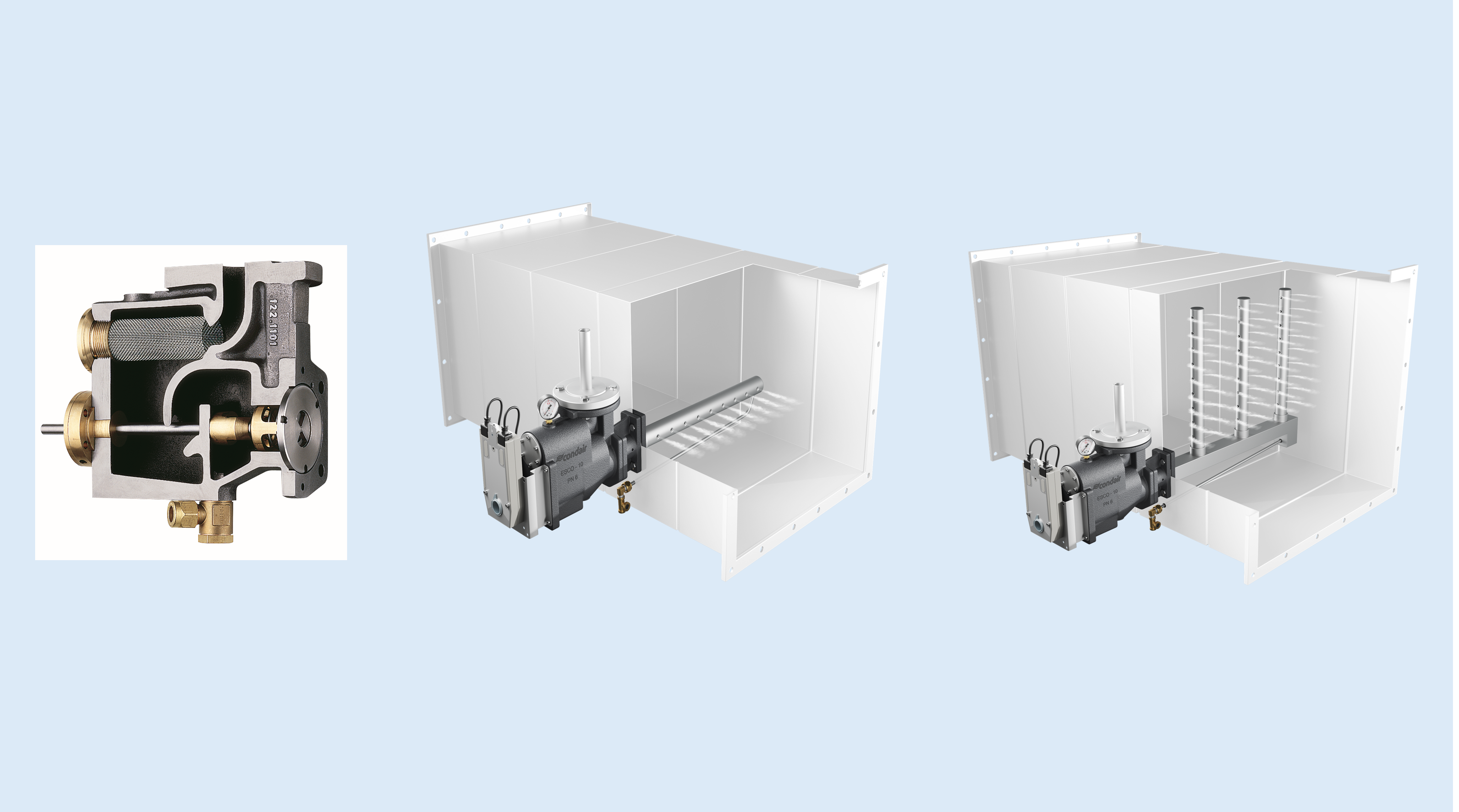

Valve body structure

The rotary valve closes completely tight and operates precisely.

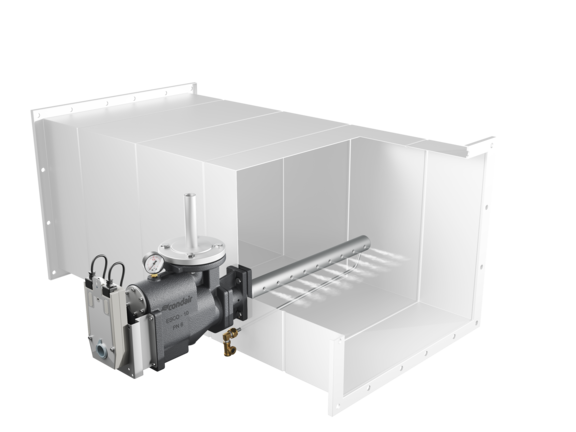

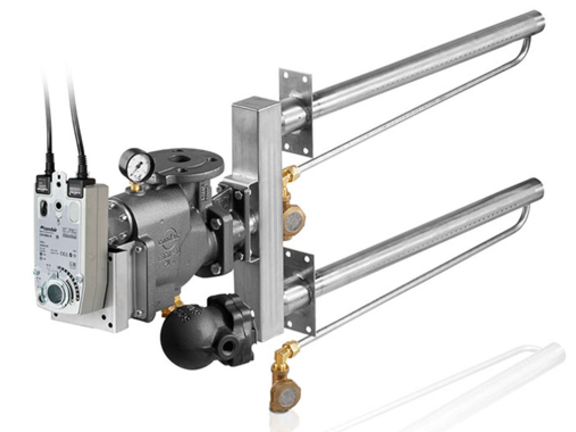

ESCO DL40

With one, two, or three horizontal steam distributors, the DL40 can be adapted very flexibly to the air duct system. This allows for a high degree of freedom in terms of steam output.

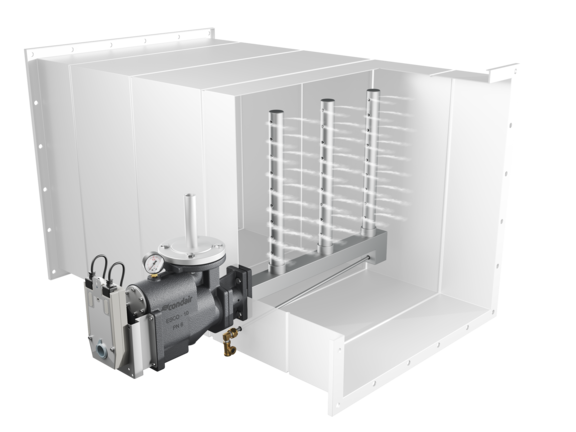

ESCO DR73

Whether you need maximum steam output or the shortest humidification distances, the DR 73 is always the best choice. The steam distribution system is individually designed.

Downloads

Get spare parts

Spare parts

Condair will help you identify exactly which component you need and ensure you receive it quickly and efficiently.

Frequently asked Questions

What is the Condair ESCO Live Steam Humidifier?

Does the Condair ESCO require special live steam quality?

How does the Condair ESCO prevent spitting or condensation inside ducts?

Discover Condair in action

Projects and references

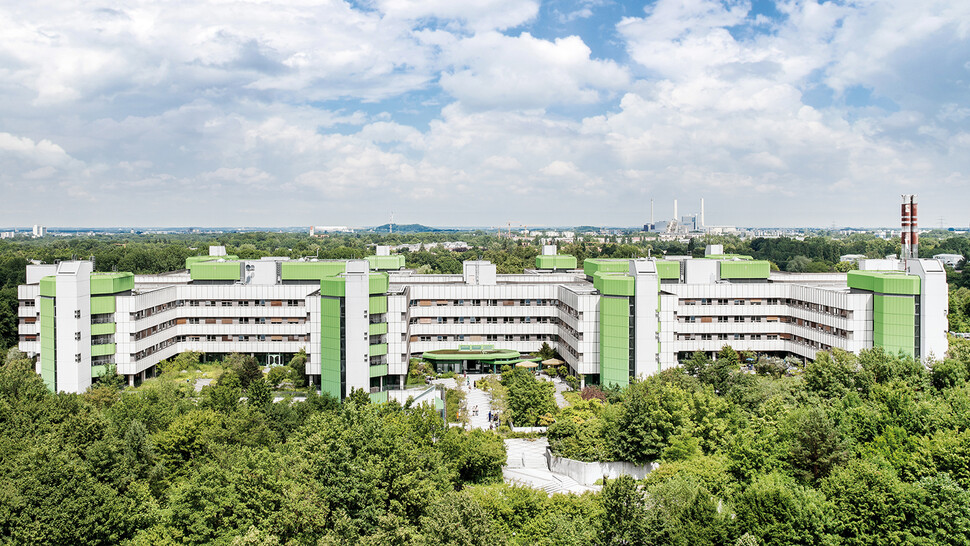

Bogenhausen Clinic, Munich – Germany

The Klinikum Bogenhausen clinic in Munich relies on the Condair ESCO pressurised steam distribution system to ensure precise and hygienic humidification in all critical areas of the hospital. The system supplies condensate-free steam with short absorption distances, guaranteeing stable air quality and reliable climatic conditions.

Messeturm Frankfurt

Der Frankfurter Messeturm ist eines der markantesten Wahrzeichen der Stadt. Bei seiner Fertigstellung im Jahr 1991 war er mit einer Höhe von 256,5 Metern das höchste Gebäude Europas.Er wurde vom Architekten Helmut Jahn im Stil der Art-Decó-Wolkenkratzer der 1930er Jahre gestaltet. Die Fassade besteht aus poliertem roten Granit und soll Wohlstand, Kreativität und Innovationsgeist symbolisieren.Im oberen Turmbereich geht der zylindrische Baukörper in eine dreigeschossige Pyramide über. Diese Pyramidenspitze enthält Teile der Haustechnik und ist für Mieter oder die Öffentlichkeit nicht zugänglich.Für eine präzise und hygienische Luftbefeuchtung sorgen Druckdampf-Verteilsysteme der Serie ESCO von Condair.

Rheinhallen, Cologne - Germany

Die Rheinhallen in Köln nutzen das Condair ESCO-Dampfverteilsystem für eine präzise, hygienische Befeuchtung, die den Komfort und eine zuverlässige Raumklimakontrolle unterstützt.

Huashan Hospital of Fudan University

Huashan Hospital in one of the top public general hospitals in China that enjoys high nation-wide reputation by its superior patient care service and research.

Peking University First Hospital

Peking University First Hospital is a large, non-profit public hospital integrating medical service with teaching, research and preventive medicine. Founded in 1915, it is a clinical medical school built in the first batch in China, which is popularly called Beida Hospital.

Tianjin Hospital

Tianjin First Center Hospital has developed into a comprehensive large-scale modern hospital in medical treatment, teaching, disease prevention and scientific research, being one of the three major medical centers in Tianjin.

Serum Institute of India Pvt. Ltd.

Serum Institute is the largest vaccine manufacturing company in the world. Hundreds of air handling systems are installed in multiple buildings within the 42 acre campus of the company in Pune.The company is using Condair steam humidifiers in their manufacturing processes to maintain the highest quality environmental conditions for optimum production efficiency. Condair is proud to be associated with the the Serum Institute and its fight against Covid - 19.

IPSEN Ltd

Ipsen is a global specialty driven pharmaceutical company in primary care. They sell more than 20 drugs in over 115 countries, with a direct commercial presence in over 30 countries worldwide. The Group has more than 4,600 employees all over the world.

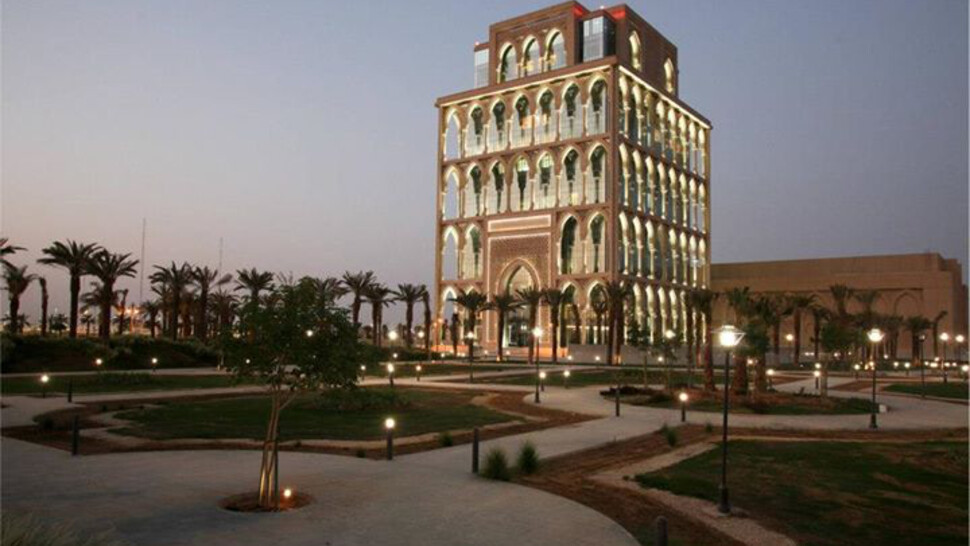

King Abdulaziz Medical City, Riyadh

King Abdulaziz Medical City in Riyadh commenced its operations in May 1983. Since then, it has continued expanding, while providing services for a rapidly growing patient population in all of its catchments areas. Today, King Fahad National Guard Hospital has evolved to be part of the King Abdulaziz Medical City with many other prominent medical centers. The Emergency Care Center at KAMC continues to be the best Trauma Care Center in the Kingdom of Saudi Arabia. It is ranked as the 4th Emergency Care Center outside the United States of America, to provide (PHTLS) Pre-Hospital Trauma and Life Support program.Around 200 Condair steam humidifiers are helping to maintain the ideal indoor humidity at KAMC for the health and comfort of patients and staff.

King Saud University, Children's Hospital

Boramae Medical Center in Seoul

Kia Motors Hwasung Plant(Painting works) in Kyunggi

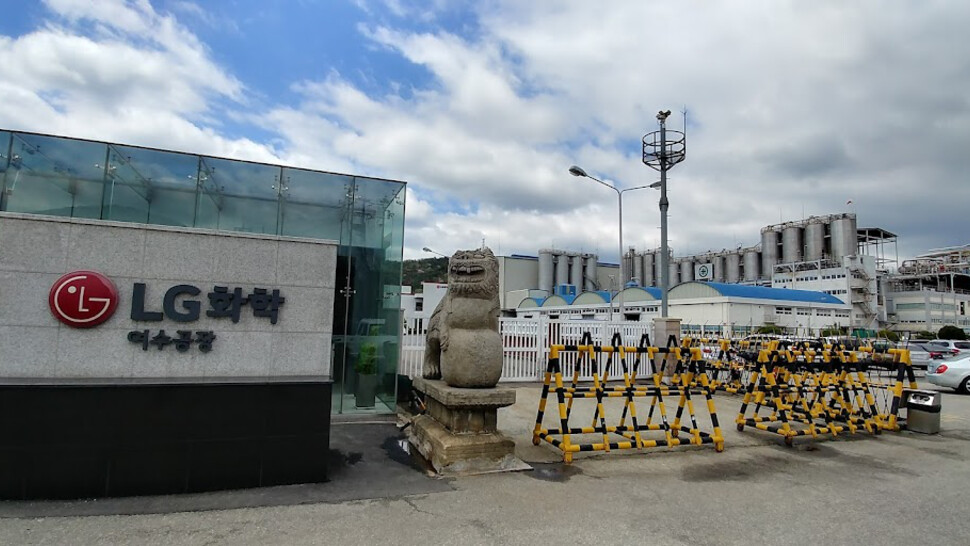

LG Chem, South Korea

LG Chem, Yeosu Plant
Latex, PVE 분말 이송장치 가습설비

LG Electronics Gasan R&D Campus

Get Free Expert Advice

If you want to explore your options for humidity control, Condair's expert sales engineers will visit your site, review your project and talk you through their recommendations.

Alternatively, if you would prefer a call or online meeting, our team are always happy to discuss possible solutions and offer free technical advice.
