Schematic layout
Professional planning is the basis for functional quality and energy efficiency. We are happy to assist you in the planning phase.
What is a resistive steam humidifier?
A resistive steam humidifier is an isothermal humidifier that generates steam using electric immersion heaters.
Steam is produced in a stainless steel cylinder lined with a reusable plastic liner that helps prevent scale build-up. Because the system uses electric heating elements rather than relying on water conductivity, it can operate with both untreated tap water and fully demineralised water. Another key advantage is its fully modulating steam output, providing precise humidity control from 0 to 100%.
How a resistive steam humidifier works
Water enters the stainless steel steam cylinder through the inlet valve, where electric heating elements generate clean steam for humidification. The water level is continuously monitored and automatically maintained to ensure reliable and efficient operation.
The generated steam is delivered through the steam hose to the steam distribution manifold, where it is absorbed into the airflow. Any condensate that forms within the air handling unit is safely removed through the condensate drain.
Steam outlet
Steam distribution options with steam hose for
in-duct humidification with blower pack for direct
room humidification
Steam Cylinder
Corrosion-resistant stainless steel cylinder

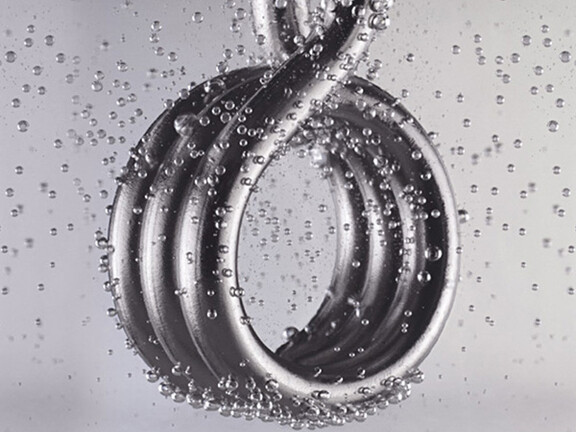

Resistive Heater
Condair RS resistive steam humidifiers can
operate on mains water, or demineralised
water, for close control and reduced servicing.

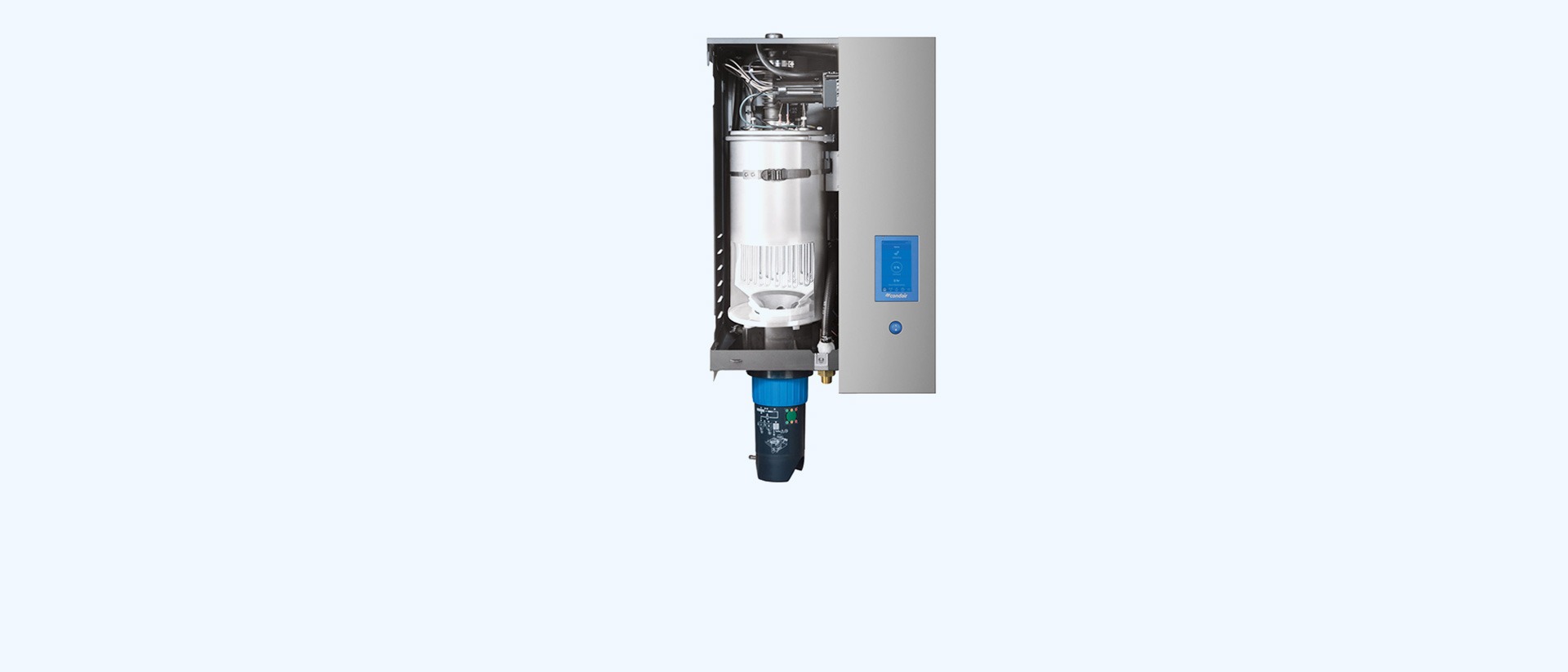

Schematic layout
Blowdown pump
Limescale collector
The location of the scale collection tank below the unit
ensures very easy access. The tank can be removed
and emptied easily without the need for opening
the unit housing.
Touch Controller
State-of-the-art user interface offers simple control
and advanced diagnostic reporting. Current and
historic performance data can be called-up in
real-time or accessed and analysed remotely via
optional IoT (Internet of Things) connectivity.
